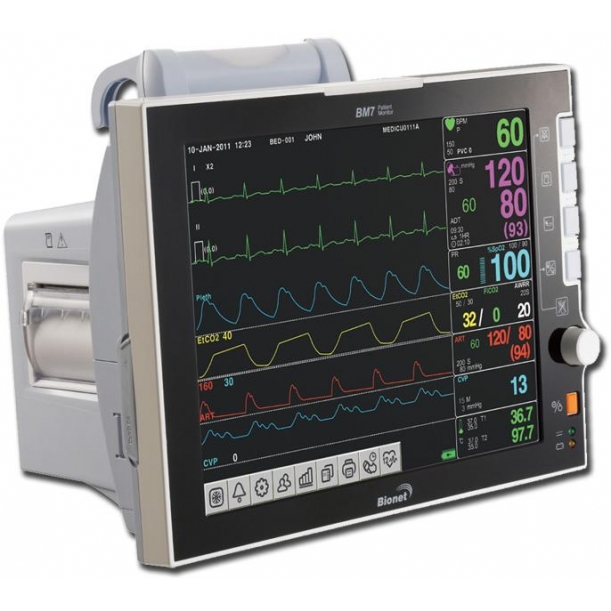

Monitor sinais vitais bm7 premiun cuidados intensivos

Ref:33774
€ 4.413,24
Preços apresentados com taxa IVA em vigor
Ver Detalhes
Quantidade ESCOLHA A QUANTIDADE

GIMA BM7 PREMIUMSuperior features:
- Touch screen operation display
- Individual sweep speed setting for each parameter
- 168 full hours of trend data storage
- 4-split large multiple display modes
- Oxy/CRG
- Drug calculation
- Screen freeze ON-OFF
- ST level analysis histogram

High performances:
- ECG, SpO2, NIBP, Respiration, 2 Temp, 2 IBP
- Sidestream EtCO2 - optional
- 13 Arrhythmia analysis modes
- High performance Suntech NIBP
- Li-ion battery with longer life time (1.5 hrs continuous operation)
- Possibility to connect to BM central monitoring system (codes 33745 - 33758)
Technical Specifications
MONITOR
- Display, Resolution: 12.1? color TFT. 800x600 pixels
- Size 322 x 250 x 224.8 mm
- Weight Approx.: 4.5 kg
- Trace:
- 6 waveforms: 2xECG, SpO2, RR or EtCO2, 2xIBP
- Sweep speed: 6.25, 12.5, 25, 50 mm/sec
- Indicators:
- Categorized alarms (3 priority levels)
- Visual alarm lamp handle and heart beat tone
- QRS beep & SpO2 pulse beep
- SpO2 pitch tone
- Battery status, external Power LED
- Interfaces: Touch screen, rotary knob
- Connectors:
- DC input connector: 18 VDC, 2.5 A
- Defibrillator Sync. Output:
- signal level: 0 to 5 V pulse
- pulse width: 100 ± 10 ms
- LAN dIgital output for transferring data
- External VGA monitor connection
- DC output 5VDC. 1A Max
- Battery: Rechargeable Li-ion battery, 1.5 hours continuous operation
- Thermal Printer:
- speed: 25, 50 mm/sec,
- paper width: 58 mm
- Data Storage:
- 168 hours trends, 20 cases of 10 sec alarm waveform
- USB memory storage
- Internal language (selectable) GB, FR, IT, ES, DE, CZ, PL, PT, RO, BG, HU, TR, RU, CN, KR

ECG
- Leads type: 3-lead, 5-lead
- Lead selection:
- 3-lead: I, II, III
- 5 lead: I, II, III, aVR, aVL, aVF, V
- ECG waveform:
- 3-lead: 1 channel
- 5-lead: 2/7 channel
- Heart rate range:
- Adult: 15-300 bpm
- Neonate/pediatric: 15-350 bpm
- Heart rate accuracy: ±1 bpm or ±1% wichever is greater
- Sweep speed 6.25, 12.5, 25, 50 mm/sec
- Filter:
- Diagnosis: 0.05~120 Hz
- Monitoring: 0.5~40 Hz
- Moderate: 0.5~25 Hz
- Maximum: 5~25 Hz
- S-T segment detection range: -2.0 to 2.0 mV
- Arrhythmia analysis: ASYSTOLE, VTACH, VFIB, BIGEMINY, ACCVENT, COUPLET, IRREGULAR, PAUSE, PVC, RONT, TRIGMINY, VBRADY, SHORTRUN
- Pacemaker detection mode: Indicator on waveform display (user selectable)
- Protection: Against electrosurgical interference and defibrillation


RESPIRATION
- Method: Thoracic impedance
- Channel selection: RA-LA or RA-LL
- Measurement range: 5-120 breath per minute
- Accuracy: ±1 breath per minute
- Apnea alarm: Yes
- SpO2 Saturation range: 0 to 100%; (70 to 100% ±2% digits)
- Pulse rate range: 0 to 254 bpm ±2 bpm

NIBP SUNTECH
- Method: Oscillometry
- Operation Mode: manual / Automatic / Continuous
- Pressure measurement range: 0-300 mmHg
- Safety pressure:
- Adult: 300 mmHg
- Neonate: 150 mmHg
- Pulse rate: 30-220 bpm
- Blood pressure:
- Adult pressure: 20 to 220 mmHg
- Pediatric pressure: 20-160 mmHg
- Neonate pressure: 20-130 mmHg
- Accuracy:
- The static pressure measurement is within ±3 mmHg
- Meets ANSI/AAMI SP 10 2002

TEMPERATURE
- Measurement range: 10 to 45°C (59 to 113°F) ±0.1°C
- Compatibility YSI SERIES 400 temperature probes

IBP
- Channels 2
- Measurement range: -50 to 300 mmHg
- Accuracy:
- < 100 mmHg ±1 mmHg
- > -100 mmHg ±1% of reading
- Pulse rate measurement range: 0 to 300 bpm
- Zero balancing:
- Range: ±200 mmHg
- Accuracy: ±1 mmHg
- Drift: ±1 mmHg of over 24 hours
- Transducer sensitivity: 5 µV/mmHg
- Pulse rate measurement range: 0 to 300 bpm
Standard accessories
- 5-lead patient Cable (MECA5 (AHA), MACE5 (IEC))
- Electrodes - box of 10
- NIBP extension tube (3 m)
- Reusable Adult Cuff (25-35 cm)
- Reusable Pediatric Cuff
- SpO2 extension cable (2 m)
- Reusable Adult SpO2 probe
- DC adapter (18 VDC, 2.5A)
- Li-ion 11.1V battery
- Thermal printer
- 2 paper roll
- User manual: GB, IT
